Construction of Ball Valve Size Range: 2" to 56"

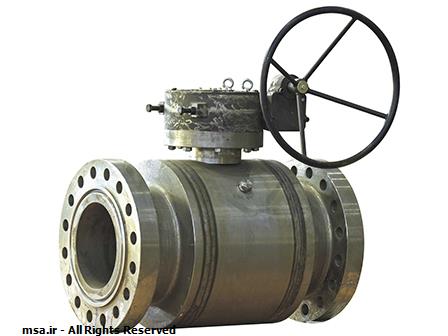

Ball Valve
Size Range: 2" to 56"
Pressure Rating:
API6D: Class 300 to Class 2500,
API6A: 2000PSI to 5000PSI
Connection: Flanged to ASME B16.5 (2" ~ 24") and ASME B16.47 Series A (26" and above)
Butt-weld ends to ASME B16.25, Clamp / Hub ends on request.
Body Materials: Carbon steel, ITCS, Stainless Steel, Carbon steel + Inconel 625 cladding and other special alloys.
Design: API6A, API 6D / ASME B16.34 / ISO 14313
Face to Face: ASME B16.10 / API 6D
Type: Side Entry (Bolted and fully welded), Top entry
Features: Double Block and Bleed, Fire Safe, Anti-Static, Anti Blow out
